IT-24P - Tiny, 24 gauge polyurethane coated wire with polyester insulated thermocouple bead.
For research applications to measure temperature in animal brains and other tissue. Fairly fragile, but very fast responding. Wire cross section .005” x .0025” Insulated tip maximum outside diameter .009”.

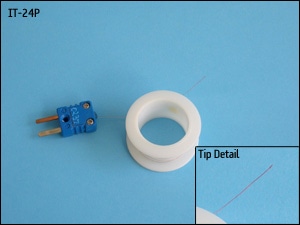

Length 36” supplied on 1” diameter protective spool as shown.
Time constant .004 seconds. Maximum temperature 70°C. Sterilization by Gas (ETO).
Specifications |
|||
Type |
Dia. |
Time Constant |
Lead Length |
IT-24P |
.009" |
0.004 secs. |
3 ft. |
