Increased efficiency in all surgical procedures

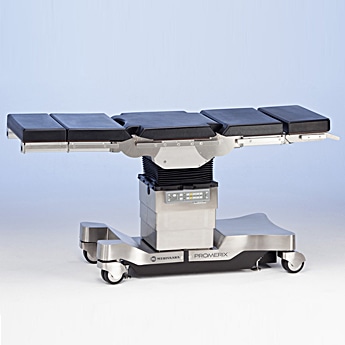

Promerix is heavy-duty, electro-hydraulic operating table for all kind of surgeries, meeting the strictest demands of modern operating theatres. With its modular construction, stable floor lock and comprehensive range of accessories, Promerix can be set up to the best possible configuration for each surgical procedure.

Promerix provides open access to the operated area and excellent working ergonomics for the surgical team without compromising on patient safety.  You can choose among two different column options, B3 for e.g. bariatric surgery and sliding for surgeries where imaging is essential.

Promerix is both easy to use and to maintain, it fulfills X-ray and C-arm requirements through its sliding possibility and reverse functions, as well as its wide table section material.

Safe working load (SWL) 325 kg (with sliding function 275 kg).

Promerix operating table features

• Electro-hydraulic, mobile operating table
• Battery capacity for up to one week of operations, table can be used during charging
• Several control options e.g. cable and infrared control unit with backlight
• Override panel in the column for emergency use
• Fulfils X-ray and C-arm requirements
• Hydraulic floor lock system with 4 cylinders
• Wide range of accessories e.g. for spinal surgery and shoulder arthroscopy
• Mattress options 65 mm IS mattress with pin or 80 mm visco-elastic memory foam
• Maximum safe working load 275 kg (sliding), 325 kg (B3, non-sliding)
• Unique latching mechanism for table top sections
• Base cover options stainless steel or ABS
• Optional 5th wheel with or without powered drive function
• PC Service software available

Technical Data

Applications

• General surgery supine position
• General surgery lateral position
• ENT surgery, struma
• Opthalmology
• Lithotomy
• High lithotomy
• Low lithotomy
• Laparoscopic surgery
• Urology
• Laparoscopic, MIS surgery
• Neurosurgery
• Spine surgery
