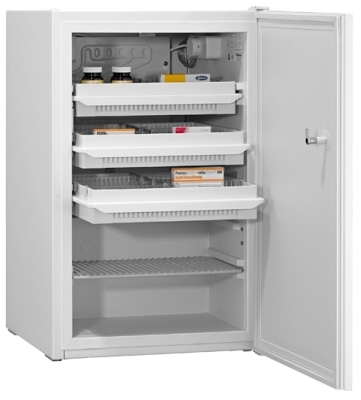

This pharmaceutical fridge MED-85 is mainly being used as a built-in device. However, this model can also be fitted in accordance with DIN 58345 at an extra cost.
- 3 drawers, 1 shelf
- Undercounter type
- Automatic defrosting
- Melt water evaporation
- Stepless temperature selection
Options
- Equipment according to DIN 58345
- Door hinge on left
- Drawer division with permanent longitudinal and cross dividers
- Lockable Top drawer
- Water tray for manual emptying
- Compressor ventilator installed, in case built-in furniture or handling with 60Hz version
- GSM-module
- Pen-recording thermometer for placing loosely inside appliance with 2 waxed paper strips
- DATALOG-USB-MONITORING or DATALOG-NET
- Temperature probe PT 100 or PT 1000, 4 wire sensor, class 1/3 B, incl. measuring flask incorporated
Technical Specifications
|
Capacity |
80 l |
|
Temperature Setting (approx.) |
+2 to +12 °C |
|
Voltage |
220 - 240 V |
|
Frequency |
50 Hz |
|
Power Consumption |
100 Watts |
|
Normal Consumption |
0,60 KW / 24 h |
|
Overall Dimensions (incl. distance from wall) |
47 x 51 x 74 (w x d x h in cm) |
|
Interior Dimensions |
38 x 41 x 63 (w x d x h in cm) |
|
Usable Dimensions |
(usable depth above 5 cm, below 15 cm less) |
|
Overall Dimensions With Door Opened at 90° |
47 x 96 (w x d in cm) |
|
Shelf Size |
23 x 37,8 (w x d in cm) |
|
Drawer Inner Dimensions |
34 x 32 x 5,6 (w x d in cm) |
|
Max. Loading Capacity Per Drawer/Shelf |
9,5 kg / 25 kg |
|
Weight |
31 kg / 37 kg (net / gross) |
For more detail: https://www.kirsch-medical.de/en/products/pharmaceutical-refrigerators/pharmaceutical-refrigerator-med.html#download
