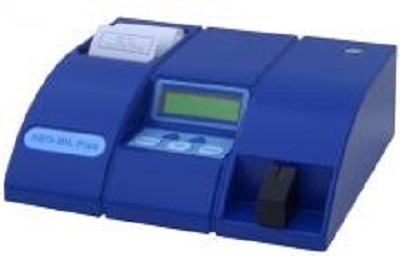

NEO BIL Plus is an advanced and innovative version of traditional bilirubinometers. It is to analyze the 'total bilirubin' through a microcapillary tube in order to follow the new born icterus course. More than 20 years of experience in this specific field and that of physics-chemestry have led us to this achievement. Thanks to the use of the most advanced technology, frequent adjustments and continuous standard resetting are over. A precise sample measurement of both bilirubin and interferentials on the same point of the capillary is carried-out by a special reading system. The reading is carried out even on a small quantity of serum. No reagents are required. NEO BIL Plus is equipped with a built in printer for the results sequential printing.
Technical features
| Intended use | measurement of total bilirubin |
| Sample | centrifuged whole blood |
| Serum | minimum volume: 10 µl |
| Reading cuvette | haeparinized haematocrit capillary |
| Measure unit | mg/dl or µmol/l |
| Measurement range | 5/30 mg/dl or 85/510 µmol/l |
| Measure system | photometric |
| Sample reading | on a single-point of the capillary |
| Zero and checkings | completely automated |
| Interferentials | automatically compensated |
| Reading time | 3s approx. even on highly haemolized samples |
| Reading inaccuracy | < 5% |
| Detector | silicon photodiode |
| Optical filters | 455 and 575 nm |
| Programming | by membrane keypad |
| Results | on LCD and printer |
| Keypad | 17 buttons |
| Display | 2 lines with 16 columns |
| Printer | 20 columns with termal paper |
| Data storage | last 1000 results |
| Interface | USB port |
| Other functions | built-in calendar and timer |
| Dimensions | 25 x 22 x 9 cm |
| Weight | Kg 2,7 |
| Power requirements | 230/115 Vac, 50-60 Hz, 25 W |
For more detail: http://www.dasitaly.com/en/prodotti/NEO-BIL%20Plus
