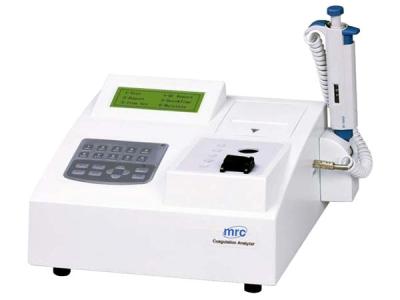

The CA-01C is a 1-channel coagulometer with LED detector. The keypad operations is easy with LCD display. It also has internal thermal-sensitive printer and electronically-linked pipette. It has large memory to store up to 6000 test results.

Features:

• Reagent position with magnetic rotor.
• Scattered light and percentage analysis ensure good results
• Open reagent system with low consumption, close reagent on request.
• QC and calibration program incorporated.
• Auto self-check when power on

Specifications:

• Analysis Parameters: PT, APTT, TT, FIB, F2, F5, F7, F8, F9, F10, F11, F12,Heparin, APC-R, Protein S, Protein C
• Principle: Scattered light with percentage analysis
• Sample Volume Required: PT: 25ul, APTT: 25ul, TT: 25ul, FIB: 25ul
• Testing Channel 1 Channels: Light Source Durable LED detector
• Sample Position 5 positions: Reagent Position 2 positions (1 magnetic mixer included)
• Testing Time: Normally 20~60 secs, Maximum time up to 600 secs
• Minimum Reagent Consumption: 30µL for APTT, 50µL for FIB, PT, APTT
• Position Warming-up: 37°C(±0.5°C)
• Memory: 6,000 test results
• Display: LCD display
• Interface: RS-232
• Input: Easy operation keypad
• Output: Internal printer
• Power supply: AC 110-220V±10%, 50~60Hz
• Net Weight: 5KG
• Dimension (mm): L270xW270xH120
