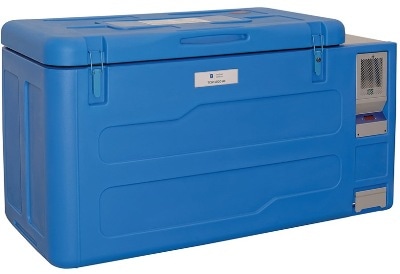

B Medical Systems’ TCW 4000 AC Compression Refrigerator for Vaccines
B Medical Systems’ TCW 4000 AC Compression Refrigerator for Vaccines
  Nov 13, 2018


Ice Liner Refrigerator for Vaccines

The TCW 4000 AC works as Ice liner refrigerator for vaccines (with installed ice lining of 25L), which act as the cold source during power cuts. It works at a preset setpoint of 5 °C (cannot be changed by the user).

  • Rotomoulded with Polyethylene
  • 1 lockable lid with 2 catches
  • Silicon gasket ensures tight sealing
  • 4 heavy duty rollers for easy transport
  • New cold chain controller
  • Automatic drain water evaporation
  • Green technology

Additional Information

Gross Volume (l)

249

Vaccine Storage Capacity (l)

240

WHO Test Procedure

E003/RF03-VP.2

WHO Specifications

E003/RF03.2

PQS-Code

E003/066

External Dimensions (H x W x D) (mm)

915 x 1625 x 780

Shipping Dimensions H x W x D (mm)

1040 x 1660 x 805

Net Weight (kg)

148

Shipping Weight (kg)

192

Outer Material

Polyethylene

Interior Material

Polyethylene

Insulation

Polyethylene

Insulation Thickness (mm)

100

Temperature Class

+5 °C – +43 °C ambient temperature (Climate zone: Hot)

Voltage (V)

115 / 60 Hz, 220-240

Power (W)

140

Energy Consumption (Kwh/24h)

0.85 (stable running), 1.24 (cool down)

Refrigerant Type

R600a

Icelining

25 L, Ice packs act as ice bank during power cuts

Scope of Delivery

1 x Brush documentation, 2 x Keys, 6 x Wire baskets for an optimum storage
