Medical Innovations: New Face Mask That Can Detect SARS-CoV-2 Virus And Other Pathogens Developed By Engineers From MIT and Harvard
Source:Medical Innovations Jul 02, 2021 3 years, 3 months, 1 week, 2 days, 4 hours, 58 minutes ago
Medical Innovations: Scientist and engineers from MIT and Harvard University have developed an innovative face mask that can diagnose if the wearer has COVID-19 within about 90 minutes. The masks are embedded with tiny, disposable sensors that can be fitted into other face masks and could also be adapted to detect other viruses.

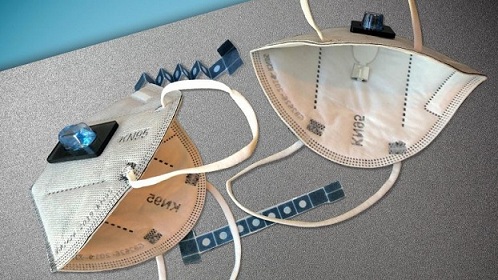

Face Masks with sensors that detects SARS-CoV-2 coronavirus. Credit: Felice Frankel and MIT/Harvard
This new sensor technology could also be used to create clothing that detects a variety of pathogens and other threats.
The highly sensitive sensors are based on freeze-dried cellular machinery that the research team has previously developed for use in paper diagnostics for viruses such as Ebola and Zika.
The study team showed that the sensors could be incorporated into not only face masks but also clothing such as lab coats, potentially offering a new way to monitor health care workers’ exposure to a variety of pathogens or other threats.
Details of their research and development can be found in the peer reviewed journal: Nature Biotechnology.
https://www.nature.com/articles/s41587-021-00950-3
Dr James Collins, the Termeer Professor of Medical Engineering and Science in MIT’s Institute for Medical Engineering and Science (IMES) and Department of Biological Engineering and the senior author of the study told
Thailand Medical News, “We’ve demonstrated that we can freeze-dry a broad range of synthetic biology sensors to detect viral or bacterial nucleic acids, as well as toxic chemicals, including nerve toxins. We envision that this platform could enable next-generation wearable biosensors for first responders, health care personnel, and military personnel.”
The high-tech face mask sensors are designed so that they can be activated by the wearer when they’re ready to perform the test, and the results are only displayed on the inside of the mask, for user privacy.
The research and development team also consists of Dr Peter Nguyen, a research scientist at Harvard University’s Wyss Institute for Biologically Inspired Engineering, Dr Luis Soenksen, a Venture Builder at MIT’s Abdul Latif Jameel Clinic for Machine Learning in Health and a former postdoc at the Wyss Institute.
The research was funded by the Defense Threat Reduction Agency; the Paul G. Allen Frontiers Group; the Wyss Institute; Johnson and Johnson Innovation JLABS; the Ragon Institute of MGH, MIT and Harvard; and the Patrick J. McGovern Foundation.
The highly innovative wearable sensors and diagnostic face mask are based on technology that Dr Collins began developing several years ago.
In 2014, he demonstrated that proteins and nucleic acids needed to create synthetic gene networks that react to specific target molecules could be embedded into paper, and he used this approach to create paper diagnostics fo
r the Ebola and Zika viruses.
In another research and development project with Professor Feng Zhang’s lab in 2017, Collins developed another cell-free sensor system, known as SHERLOCK, which is based on CRISPR enzymes and allows highly sensitive detection of nucleic acids.
Interestingly these cell-free circuit components are freeze-dried and remain stable for many months, until they are rehydrated. When activated by water, they can interact with their target molecule, which can be any RNA or DNA sequence, as well as other types of molecules, and produce a signal such as a change in color.
Dr Collins and his research colleagues most recently began working on incorporating these sensors into textiles, with the goal of creating a lab coat for health care workers or others with potential exposure to pathogens.
Initially Dr Soenksen performed a screen of hundreds of different types of fabric, from cotton and polyester to wool and silk, to find out which might be compatible with this kind of sensor.
Dr Collins further added, “We ended up identifying a couple that are very widely used in the fashion industry for making garments. The one that was the best was a combination of polyester and other synthetic fibers.”
In order to make highly effective wearable sensors, the study team embedded their freeze-dried components into a small section of this synthetic fabric, where they are surrounded by a ring of silicone elastomer. This compartmentalization prevents the sample from evaporating or diffusing away from the sensor.
To further demonstrate the technology, the researchers created a jacket embedded with about 30 of these sensors.
The research team showed that a small splash of liquid containing viral particles, mimicking exposure to an infected patient, can hydrate the freeze-dried cell components and activate the sensor. The sensors can be designed to produce different types of signals, including a color change that can be seen with the naked eye, or a fluorescent or luminescent signal, which can be read with a handheld spectrometer. The researchers also designed a wearable spectrometer that could be integrated into the fabric, where it can read the results and wirelessly transmit them to a mobile device.
Dr Nguyen added, “This gives you an information feedback cycle that can monitor your environmental exposure and alert you and others about the exposure and where it happened.”

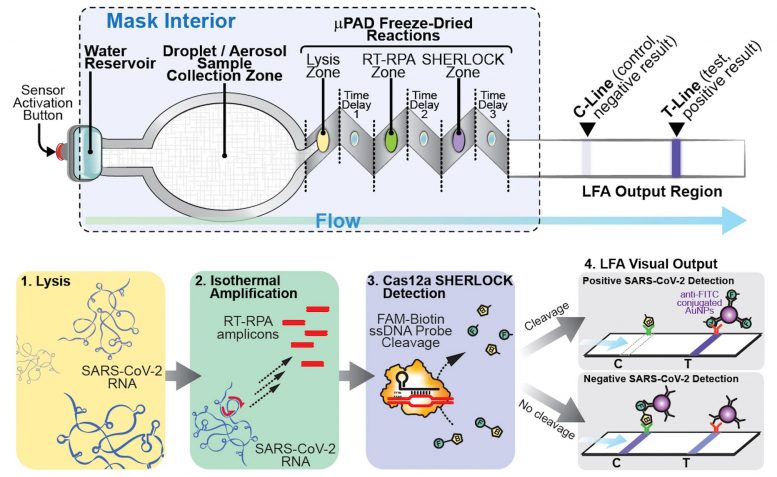

Scientists embedded sensors on the inside of the mask to detect viral particles in the breath of the person wearing the mask. The mask also includes a small reservoir of water that is released at the push of a button when the wearer is ready to perform the test. Credit: MIT/Harvard
Interestingly as the research team was finishing up their work on the wearable sensors early in 2020, Covid-19 began spreading around the globe, so they quickly decided to try using their technology to create a diagnostic for the SARS-CoV-2 virus.
In order to produce their diagnostic face mask, the researchers embedded freeze-dried SHERLOCK sensors into a paper mask. As with the wearable sensors, the freeze-dried components are surrounded by silicone elastomer. In this case, the sensors are placed on the inside of the mask, so they can detect viral particles in the breath of the person wearing the mask.
The diagnostic mask also includes a small reservoir of water that is released at the push of a button when the wearer is ready to perform the test. This hydrates the freeze-dried components of the SARS-CoV-2 sensor, which analyzes accumulated breath droplets on the inside of the mask and produces a result within 90 minutes.
Dr Nguyen further added, “This test is as sensitive as the gold standard, highly sensitive PCR tests, but it’s as fast as the antigen tests that are used for quick analysis of Covid-19.”
The initial prototypes developed in this study have sensors on the inside of the mask to detect a user’s status, as well as sensors placed on the outside of garments, to detect exposure from the environment.
The research team can also swap in sensors for other pathogens, including influenza, Ebola, and Zika, or sensors they have developed to detect organophosphate nerve agents.
Dr Soenksen added, “Through these demonstrations we have essentially shrunk down the functionality of state-of-the-art molecular testing facilities into a format compatible with wearable scenarios across a variety of applications.”
The study team has filed for a patent on the technology and they are now hoping to work with a company to further develop the sensors.
Dr Collin added, “The face mask is most likely the first application that could be made available. I think the face mask is probably the most advanced and the closest to a product.”
The new innovative face mask has already generated a lot of interest from outside groups and already a few strategic groups have been identified to collaborate on manufacturing, marketing and distribution.
